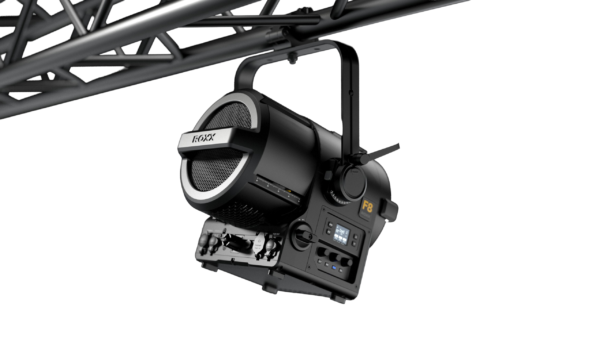

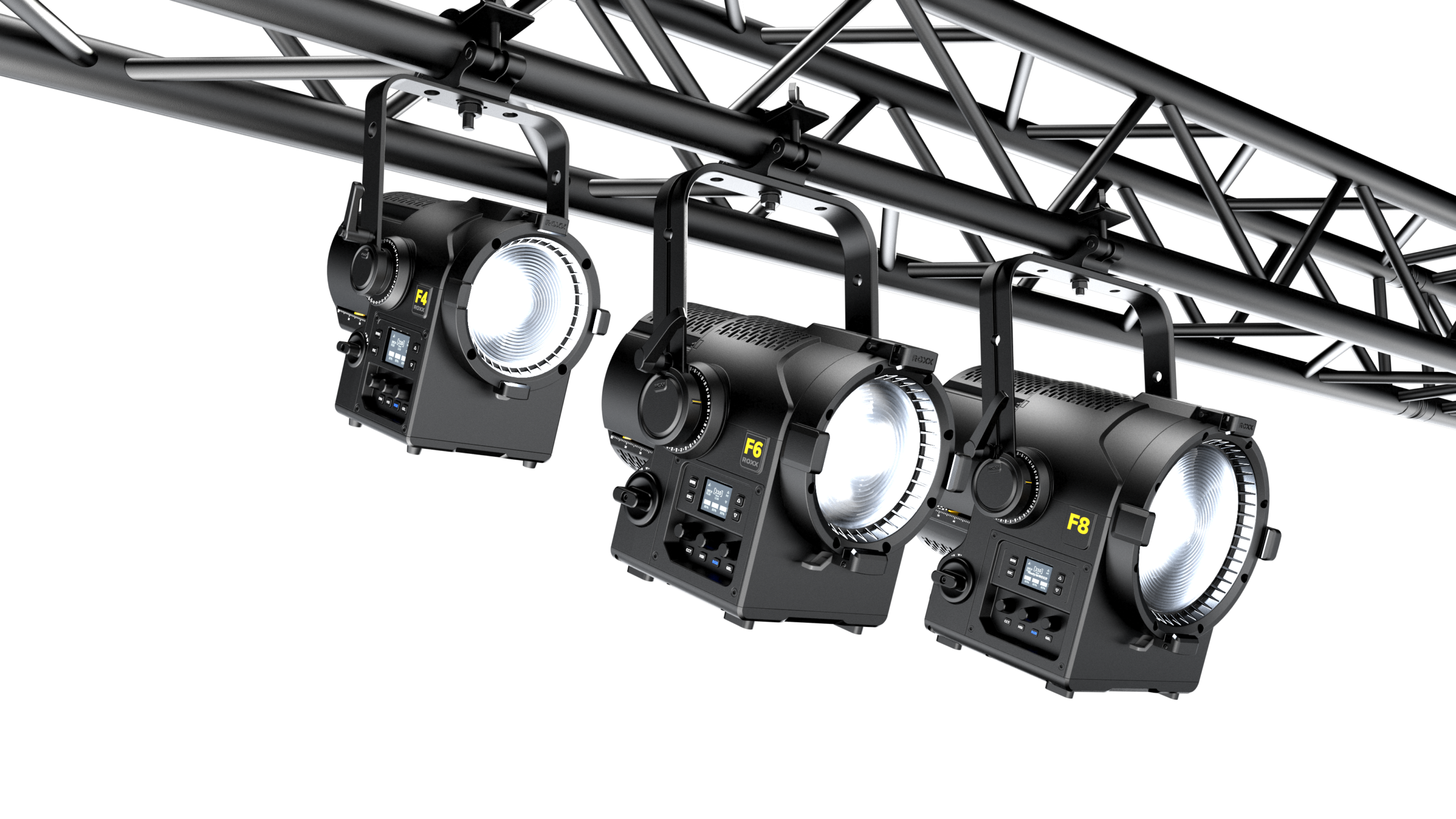

Designed for professional film, broadcast, exhibition and stage applications, the ICON Series combines uncompromising optical performance with a robust IP65-rated weatherproof construction and intelligent handling. The range includes three perfectly matched models: the ICON F8 with a powerful 800W 6-in-1 LED engine as a true 2K replacement, the ICON F6 with 400W LED as a true 1K replacement and the compact ICON F4 with 200W LED as a true 300W replacement — ensuring the right light for every creative challenge.
Thanks to their IP65-rated housing and a specially designed sealed lens system, ICON fixtures are protected against water, dust, haze, and fog residues. This ensures consistent performance in both indoor and outdoor use while minimizing long-term maintenance costs. Each fixture features a fixed front lens for a stable center of gravity and compact dimensions, a manual zoom range of up to 9°-60° and an integrated zoom indicator that clearly displays the exact zoom position at all times — making pre-focusing and setup faster, more precise, and fully repeatable.

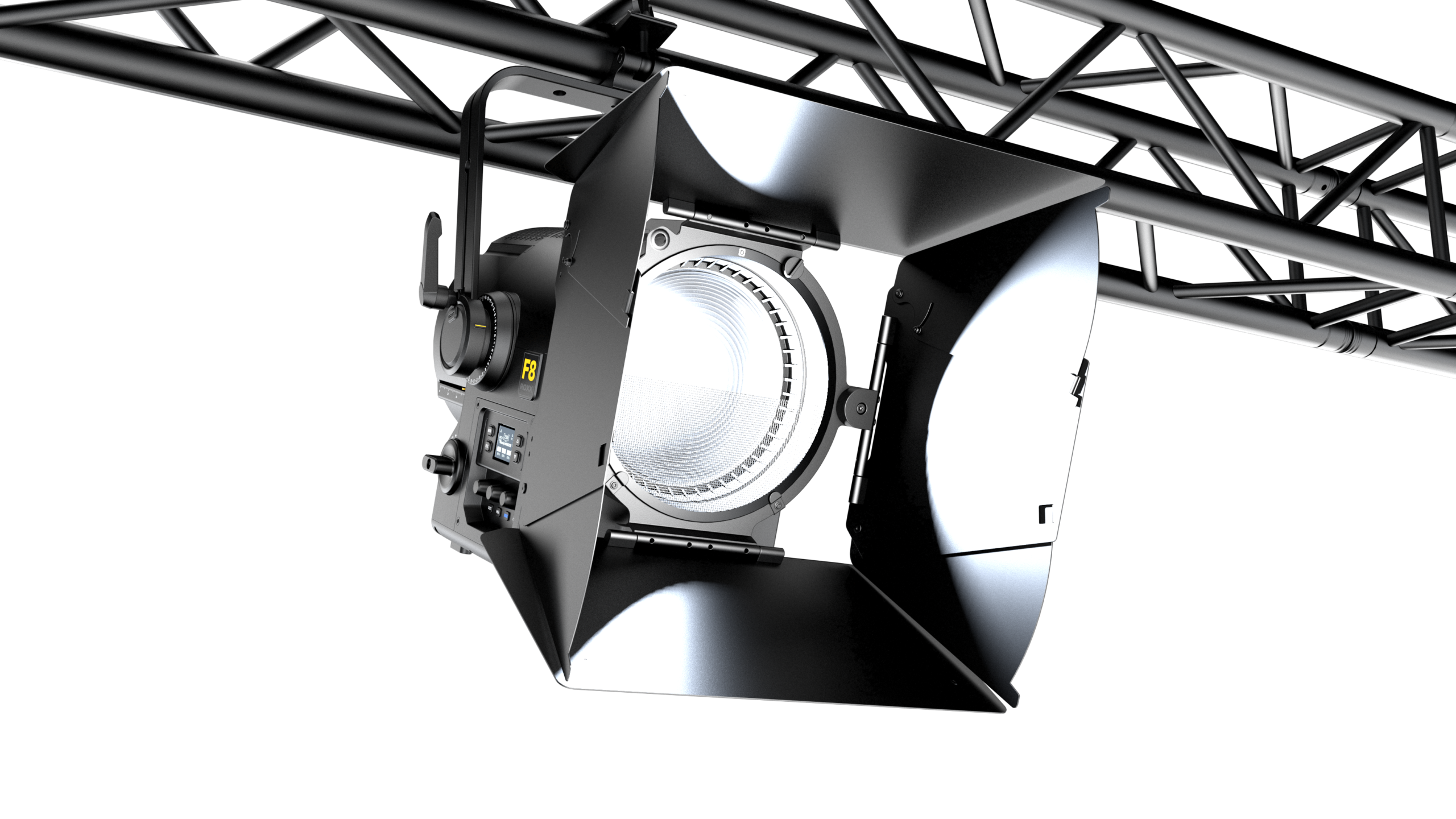

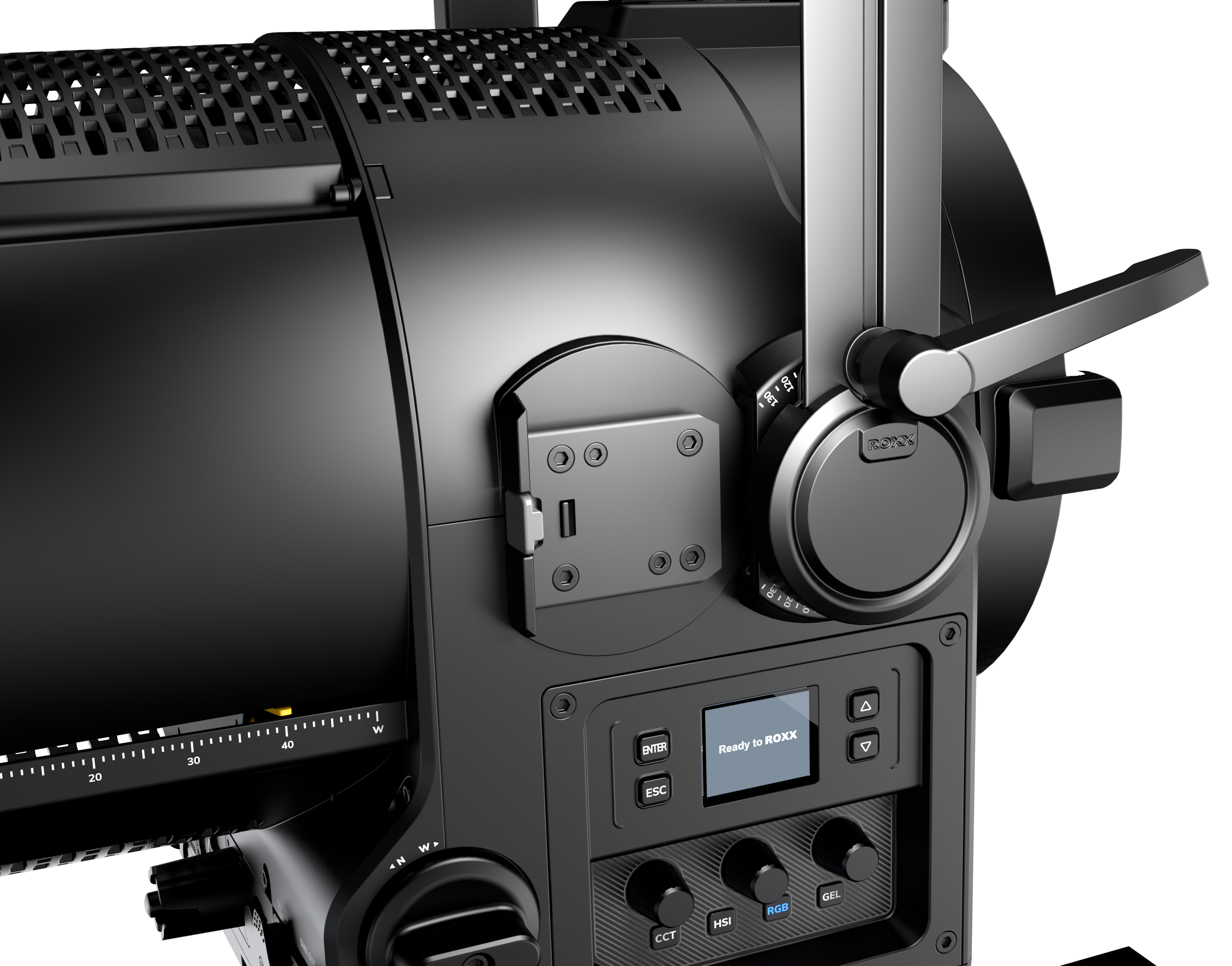

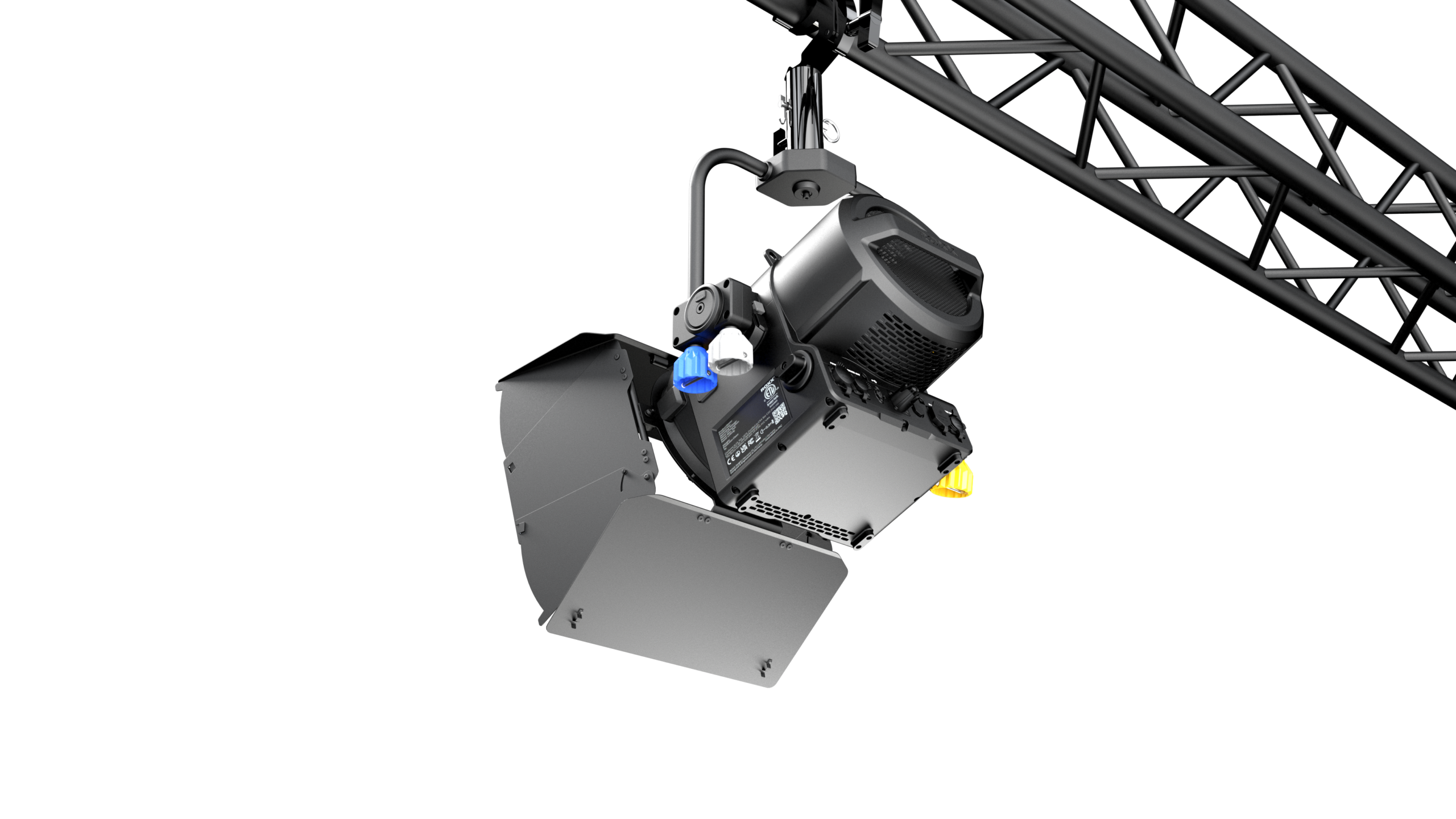

18-bit dimming – Light in its finest resolution. Four times more precise and incredibly smooth. Bringing visible benefits in practical and professional use, this ultra-fine dimming with more than 262.000 steps provides smoother transitions and stepless dimming down to black, as well as tremendous color fidelity. A quick-release system for yokes on ICON F6 and F8 allows for effortless changes without any tools – enabling operators to switch between standard and PO yokes in seconds, ensuring maximum flexibility on set. An optional tracklight adapter for ICON F4 greatly expands the range of applications. The ICON Series is also KLSTR technology ready, enabling next-generation workflow efficiency. Enormous time savings during addressing and setup: up to 100 units can be daisy-chained over 400m, with zero downtime in case of a cable break — a true advantage for large installations. Control is intuitive and modern with a user-friendly TFT display featuring backlit buttons and direct access to CCT, HSI, RGB, and GELS modes. NFC technology simplifies setup and management, while optional LumenRadio CRMX and Bluetooth modules provide wireless control options. Advanced 8-Way Barndoor – Maximum Control. Unlimited Creativity. The revolutionary advanced 8-Way Barndoor redefines light shaping. In addition to the classic design with eight blades, two blades can be rotated along the X-axis to correct slanted distortions and transform them into a straight edge, enabling a new level of precision. Whether you need precise light control, subtle shading, or creative shaping, this flexible system adapts to any lighting scenario. An integrated grid holder further improves control. For example, glare in the front rows of the audience can be avoided by using single or double grids for partial light reduction (grid S 30% D 60%) and sophisticated light gradations – perfect for TV, cinema, or theater applications. More control. More precision. More creative freedom.
